The time and attendance and access control markets continue to experience significant growth in the use of biometric devices. Used in conjunction with attendance management software, biometric devices can make a considerable contribution to the reduction of employee costs in an organization. Companies can eliminate card fraud and also monitor the staff attendance in real-time. A report can be run by the designated managers at any time to determine which employees arrived late or absent during the selected period.

The system works in a very simple way. Employees can simply scan their finger or flash the ID card and the stored template and their identity is automatically verified. The reader shows the message to indicate ‘accept’ or ‘reject’.

Beyond being a time and attendance clock, the biometric reader also has data management keys that allow to accept various types of transactions like ‘business meeting’, ‘personal leave’ etc. Thus the attendance software can generate more accurate information based on the punches.

The Device can work as a stand-alone unit, networked, used with a modemor via 3G connectivity. It can be fixed or portable and has multiple serial and parallel communication interfaces. The System cost-effectively reduces risk and also eliminates the possibility of "Buddy Punching" in time and attendance situations.

The biometric solution allows you to streamline hour and labor tracking, automate employee scheduling and improve job costing to create a more efficient and profitable organization.

As attendance of the employees are essential for performance appraisal and overall productivity, biometric ensures that it is set in a manner that is sophisticated enough not to leave in any room for errors. The method of Biometric attendance reduces the chance of errors and increases overall efficiency.

Features

  • Intuitive easy to use Touch screen GUI

  • Fast matching speed on RF card & reliable biometric

  • NFC Smartphone support

  • Pixel Digital Camera, Microphone,
    Door Bell and Speaker easy for visitor management

  • Versatile communication interface: com port, USB,
    TCP/IP and Wireless mode etc

  • SD Card Support

Technical Specification

Model CN8X0(F)(X)-X
Technology 3.56MHz + Fingerprint (option); 125KHz+ Fingerprint (option)
RFID Standard ISO14443A 4(part 1-4), Mifare, Mifare Plus and DesFire EV1, ISO14443B, Felica,EM 125KHz ISO18092, NFC ISO18092 NFC (peer to peer)
RFID Card Supported
  • ISO18092 NFC (peer to peer)
  • Ultralight, Mifare 1K/4K
  • Mifare Pro/Prox
  • Mifare Plus
  • DESFire EV1
  • SLE 55Rxx
  • SLE66CL160S
  • ISO14443A/B compatible cards
  • Sony Felica and HID I-Class
  • LEGIC compatible cards (option) ;EM4100, EM4102, EM4200
Operating Voltage Alternative: ext. power supply DC 9-24V; Power over Ethernet (PoE option), IEEE802.3at; Li-ON battery option
CPU Up to 800MHz
Memory 256MB SLC Nand Flash + 256 MB mobile DDR
Operation System Android/Linux
LCD 7.0 inch WVGA touch screen
Camera Embedded 1.3M Pixel Digital Camera
Door Phone Microphone, 2W/8 OHM Speaker (controllable volume)
Infrared sensor Detect approaching people and activate Touch Screen
Fingerprint sensor 500dpi Optical Senso
Fingerprint Sensing area 16.0*19.0mm
Fingerprint Image size 272*320 pixels
Fingerprint FRR/FAR 0.001% / 0.1%
Fingerprint Identification 1:1 mode; 1:N mode (1:1900; 1:9500 on request)
Template Capacity 1900 or 9500 on request
User Capacity 100,000 users
Log Capacity 1,000,000 events
Dimension 230*160*45mm
LED Bio-color controllable LEDs (Red, Green)
USB memory slot 2 USB (Host)
Communication Interface TCP/IP(RJ45), RS232 / RS485, USB and wireless WIFI, GPRS, 3G
Wiegand Interface 2 Wiegand In (Wg26-58) + 1 Wiegand Out(Wg26-58)
GPIO port 4 input, 4 output
Relay output 3 relay outputs
SD card One Secure Digital card slot
Battery Build-in Li-ON battery , 4.2V/ 2200mAH (option)
Temper Proof Yes
Operating temperature -0 C ~ +50 C
Storage temperature -10 C ~ +60 C
Operating Humidity 5%~90% relative humidity non-condensing
Indoor/outdoor Indoor
Finger Capacity 3000 templates
Transaction Capacity 100,000
Sensor Optical Sensor
Algorithm Version Finger V10.0
Communications RS232/485, TCP/IP,USB-host, USB-client
Standard Functions Web Server, Work Code, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, 9 digit user ID
Optical Functions ID/Mifare/HID
Display 3 inches TFT Screen
Power Supply 5V DC 2A
Operating Temperature 0℃-45℃
Operating Humidity 20% - 80%
Dimension 186.0X136.5X47.0 mm

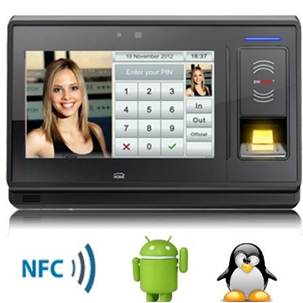

Android/Linux based device offers a perfect RFID & Biometric solution for multi-application, even popular NFC Smartphone solution. With an easy-to-use 7.0 inch capacitive touch screen and high fast & accurate fingerprint authentication as option, uTouch provides intuitive and comfortable user experience through versatile interface options, wireless communication mode and embedded web server to enable easy network integration and data transfer for IP-based multi-application management. Fully open robust and strong platform with API and cross Compile for embedded GUI software development, uTouch can be flexible used for a wide range of applications as club membership and E-payment, kiosk, time attendance, physical access etc., much more than traditional time attendance single-purpose use terminal.
